40Times/min PLC Control Durability Tester For Chair Testing

Name: 40Timesmin PLC Control Durability Tester For Chair Testing
Brand: Haida
Price: 1 USD

Best 40Times/min PLC Control Durability Tester For Chair Testing wholesale

Brand Name : Haida

Model Number : HD-F780

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

product name : Seat Face And Back Testing Equipment

the number of tests : 0 ~ 999999 times can be set arbitrarily

test speed adjustable : 0~ 40 /min

Voltage : Single Phase 220V

Contact Now

Chair Seating and Back Durability Tester With Impact Test And Static Front Test

Product introduction:

Seat Face And Back Testing Equipment to load the module must shape, weight on the horizontal seat with a certain value, the frequency of repeated loading, test bench strength, durability function.

Technical parameters:

power drive height can be adjusted to suit different chairs	500-1200 mm
the number of tests	0 ~ 999999 times can be set arbitrarily
test speed adjustable	0~ 40 times/min
power driver	adjustable
the seat surface load capacity	5~200kg
back loading capacity	5~100kg
compressed air requirements	6 kg/cm2
pressure holding time and cycle time can be set	0 ~ 99S
the control mode	PLC programmable controller
the power supply	220 V AC, single phase, power = 200 W

Product Details:

40Times/min PLC Control Durability Tester For Chair Testing

Product Tags:

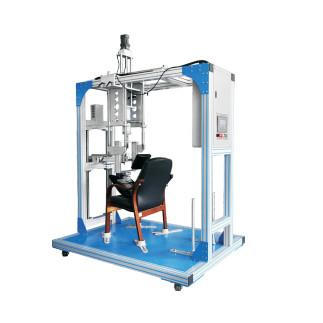

40Times/min PLC Control Durability Tester For Chair Testing Images
