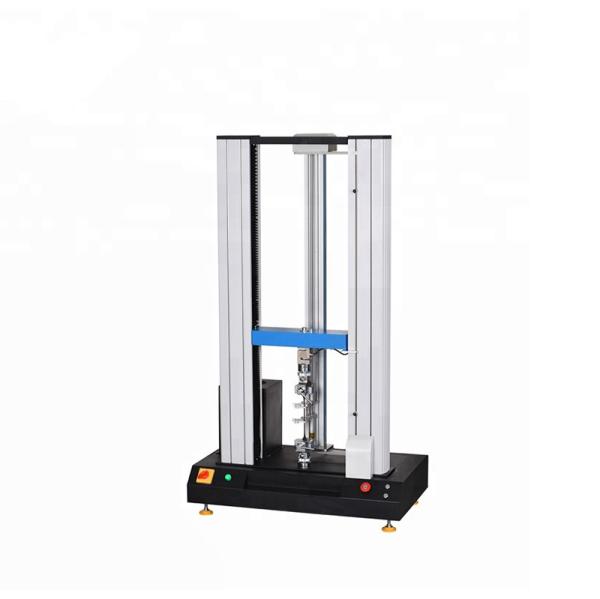

Universal 0.5% F.S 100mm/Min Tensile Testing Lab

HD-B604B-S Universal Test Machine.pdf

Tensile testing machine is used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel, fiberglass and other materials are developed for materials

Standard Features

Applications

1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample

Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Adhesives Tape/Pressure Sensitive Tape

• EN 1719: Loop Tack Test
• ASTM D3654: Shear Adhesion Test
• ASTM D3759: Tensile &Elongation Test
• FTM: 180&90 Degree Peel Test, Loop Tack
• EN 1939, ASTM D3330: 180&90 Degree Peel Test
• ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test

Adhesive

• ASTM D903: Peel & Stripping Test
• ASTM D1002: Shear Strength (Adhesive for metal to metal)
• ISO 4587: Tensile lap-shear strength (Rigid-to-rigid bonded assemblies)

Film/Plastic Film

• ASTM D882: Tensile Test
• ASTM F1306: Puncture Test
• ASTM D1938: Trouser Tear Test
• ASTM D2732: Thermal Shrinkage Test
• ASTM D1709, ISO 7765-1: Free-Falling Dart Method
• ASTM D1894: Static and Kinetic Coefficients of Friction
• ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test

Plastic& Plastic Pipe

• ISO 180: Izod Impact Test
• ISO 9966: Ring Stiffness Test
• ISO 179: Charpy Impact Test
• ISO 4892: Weathering Aging Test
• ASTM D3163: Plastic Lap-Shear Test
• ISO 4422, ISO 3127: Pipe Impact Test
• ASTM D4565, ISO 11357, EN 728: DSC/OIT
• ISO 75: Heat Deflection Temperature (HDT)
• ASTM D1598: Hydrostatic Pressure and Burst Test
• ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
• ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
• ISO 306, ASTM D1525: Vicat Softening Temperature (VST)
• ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test

Rubber

• ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test
• ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
• ASTM D624-00, ISO 34-1: Tearing strength Test
• ASTM D395-03, ISO 815-1: Compression Set Test
• ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
• ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test
• ISO 2781(Method A): Density Test
• ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter

Ø ASTM D1646: Mooney Viscometer

Foam

• ASTM D3574 Test E, ASTM D1623, ISO 1798: Tensile Test
• ASTM D3574 Test F, ISO 8067: Tear Test
• ASTM D3574 Test A: Density Test
• ASTM D3574 Test B1, ISO 2439: IFD Test
• ASTM D3574 Test H: Resilience (Ball Rebound) Test
• ASTM D3574 Test I3: Dynamic Fatigue Test by Constant Force

Metal

• ASTM E8, EN 10002-1,ASTM A370: Tensile Test
• ASTM A370: Bend Test
• ASTM B-117, ISO 3768: Salt Spray Test
• ISO 6508: Rockwell Hardness Test
• ISO 6507: Vickers Hardness Test
• ISO 6506, ASTM E10-14: Brinell Hardness

ASTM E23, ISO 148: Impact Test
